Clone Renault EMS3125 with OBDSTAR DC706 and MP001 in Boot

 OBDSTAR DC706 ecu cloning tool recent upgrade adds Renault EMS3125 ECU. Here is an example on cloning Renault Continental EMS3125 ECU by DC706 in boot mode.

Tools used:

OBDSTAR DC706 ecu cloner

OBDSTAR MP001 programmer



Procedure:

Go to Car->ECM software
Quick search Renault Continental EMS3125 TC1782 ECU and check instructions and boot mode connection

To clone this ECU, you will need to read INT eeprom and INT flash, then write INT flash and eeprom.

Need disassemble ECU.

Check wiring diagram.

Need to connect 1 Boot and 1 C4-01 A1 Pins.

You will be able to zoom in/out pinouts.

Then connect harness with ECU

Finally connect the MP001 adapter with DC706

OBDSTAR DC706 will show you all wiring connections.

Follow wiring to set up everthing.

Then go to ECU, select Boot mode and MP001

Press Connect
1st step will allow you to read password

Read INT flash
Save INT flash

Read INT eeprom
Save INT eeprom

Write INT flash

Load external data

Select INT Flash data and write

Write INT EEPROM

Load external data

Select INT eeprom data and write

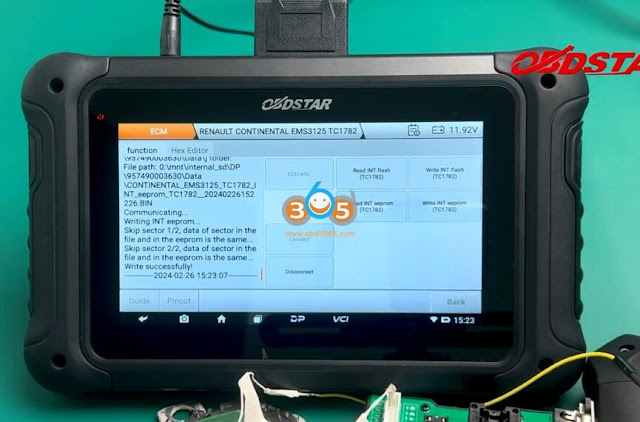

Write both INT flash and eeprom successfully.

Don’t forget to press Disconnect when cloning is done.
