OBDSTAR DC706 VAG MED17.5.25 Odometer Correction

 OBDSTAR DC706 update VW ME17/MED17 Odometer correction functions since ECM version V30.48.



Supports mileage correction for VW Audi Bosch MED17.1, MED17.5.25 etc ECUs.

Here we take VW Bosch MED17.5.25 ECU as an example.

OBDSTAR DC706 VAG MED17.5.25 Odometer Correction 1

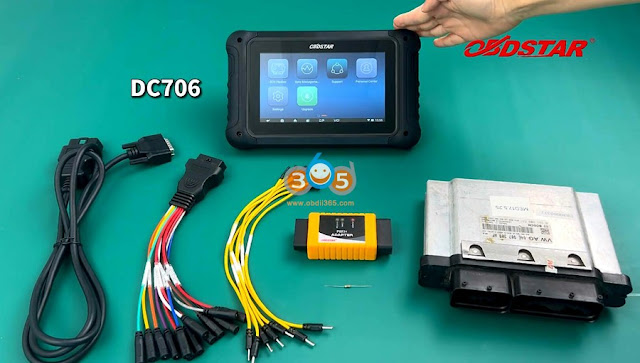

Tools need:

OBDSTAR DC706 ecu cloning tool

OBDSTAR P003/P003+ adapter or MP001 programmer

OBDSTAR DC706 VAG MED17.5.25 Odometer Correction 2

Procedure:

Go to Car->ECM software

Quick search ECU, i.e VW Bosch MED17.5.25

Check instruction and wiring connections

OBDSTAR DC706 VAG MED17.5.25 Odometer Correction 3

OBDSTAR DC706 VAG MED17.5.25 Odometer Correction 4

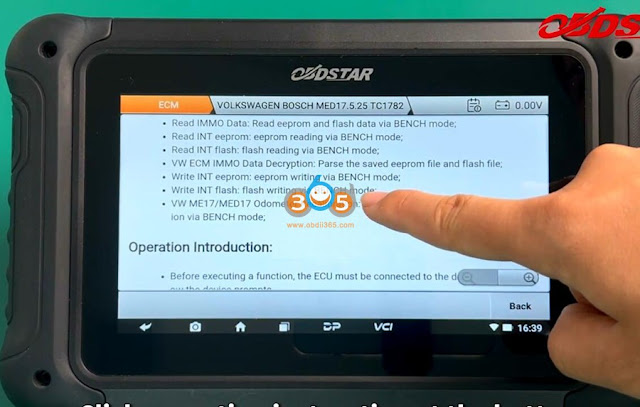

DC706 will read INT eeprom/flash, write INT eeprom/flash, read IMMO data, decrypt IMMO data and correct mileage for this ECU.

OBDSTAR DC706 VAG MED17.5.25 Odometer Correction 5

MP001 connection

OBDSTAR DC706 VAG MED17.5.25 Odometer Correction 6

P003+ connection



Check Pinout

You will need to connect a 120ohm resistor.

OBDSTAR DC706 VAG MED17.5.25 Odometer Correction 7

OBDSTAR DC706 VAG MED17.5.25 Odometer Correction 8

Follow wiring diagram to connect ECU with P003 and DC706.

OBDSTAR DC706 VAG MED17.5.25 Odometer Correction 9

OBDSTAR DC706 VAG MED17.5.25 Odometer Correction 10

Select VW Bosch MED17.5.25, bench mode and P003+

OBDSTAR DC706 VAG MED17.5.25 Odometer Correction 11

Press Connect

Read Chip ID successfully.

OBDSTAR DC706 VAG MED17.5.25 Odometer Correction 12

Select VW ME17/MED17 Odometer Recalibration function
OBDSTAR DC706 will read the current mileage (KM).

Enter the mileage you desire. Press OK and confirm the value you entered.

OBDSTAR DC706 VAG MED17.5.25 Odometer Correction 13

Correct mileage successfully.

OBDSTAR DC706 VAG MED17.5.25 Odometer Correction 14

Check odometer on dashboard after installing the ECU back to vehicle.
