OBDSTAR Read 2022 Hyundai Elantra PIN and Program Smart Key

 How to read pin code and add smart key to a 2022 Hyundai Elantra using OBDSTAR X300 DP Plus? Check instructions below:

1.Read pin code

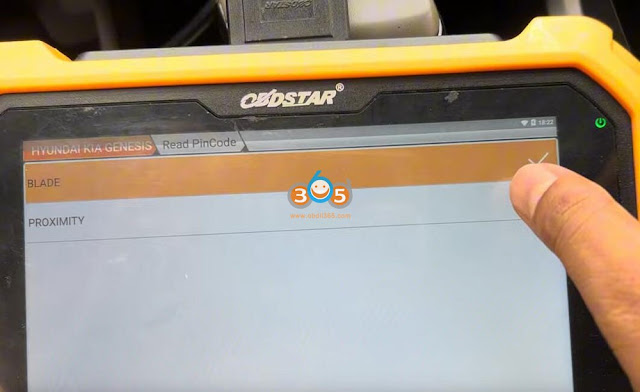

Select Hyundai latest software->Read pin code->Proximity
The function requires network connection

Read pin code successfully.

2. Program smart key

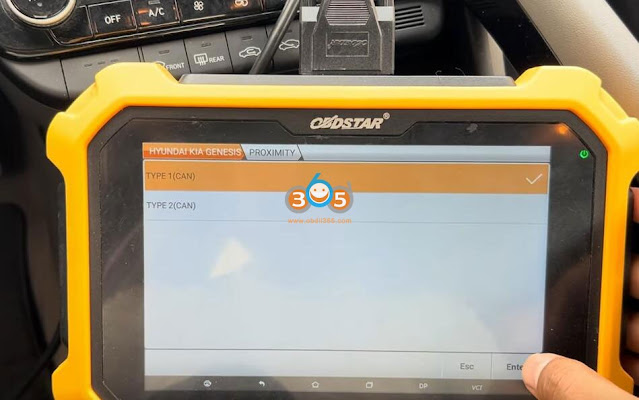

Select from model->Hyundai->North America->Elantra-> 2019 onwards-> Proximity->Type 1(CAN)->Program Smart keys

The function requires network connection.
All keys will be erased and need to be programmed to use.

Turn off ignition, open and close the driver door.

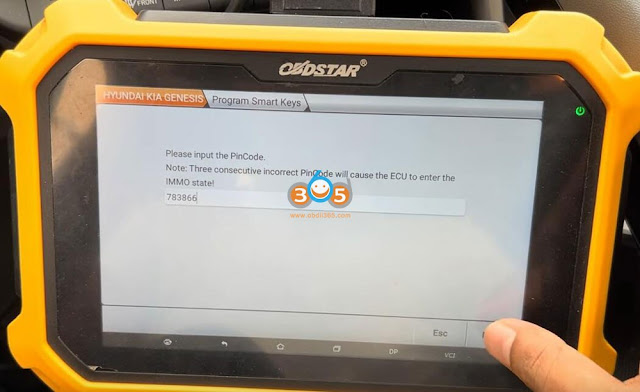

Input pin code to continue.

Press Enter button, use the top of the proximity key to keep pressing the start/stop button for 5s within 5s, the immobilizer light will flash.
If the operation fails, remove the key shell and perform function again.

X300 DP Plus said key is not detected. So we remove key shell and try again.

Repeat and program 1st key successfully.

Put the 2nd key to the Start/Stop button to program until completed.

Done.
