OBDSTAR DC706 can be used to clone Fiat Magneti Marelli IAW 9GV, 9GF, 7GF, 10GF etc ECUs on bench. Here is an example of cloning data from your original faulty engine ECU to your replacement engine ECU.
ECU example: Fiat IAW 9GV
Original ECU
Replacement ECU
Device used:
OBDSTAR DC706 full ECU/TCU cloning tool
Stable network connection.
An Original ECU
A Replacement ECU
Procedure:
Select ECM->Fiat->Marelli IAW 9GV CAN MPC5634+ 95320

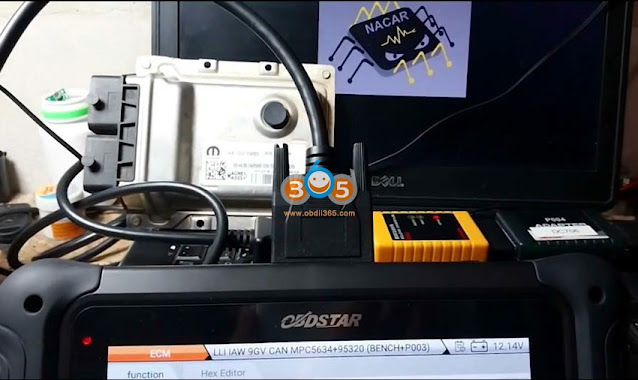

Connect 9GV ecu with DC706 via P003 adapter follow the wiring diagram
Successfully connected it.
Read and save eeprom (95320)
Read and save flash (MPC5634)
Read and save eeprom decrypted 95320
Read and save eeprom 95320 again
Connect new ECU with OBDSTAR DC706 and p003 adapter.
Write flash data to new ECU.
