OBDSTAR X-100 Pro Program Key for Ford Fiesta 2015

Original OBDSTAR X100 Pro auto key programmer Ford immobilizer software has updated to V30.24. It is able to program smart keys such as Ford Focus, Mondo, Transit, new Fiesta etc. very simple to use. Here is the instruction on programming keys for Ford Fiesta 2015  by X100 Pro.

Procedure:

Connect OBDSTAR X-100 Pro with vehicle via OBD main cable

VEHICLE menu, Select [IMMOBILISER]

Choose vehicle model: [FORD] -> [FORD V30.24] and press ENT

It’s loading, initializing and authorizing, just wait…

[China Ford]

Choose [Smart key system]

[Fiesta] -> [Program keys] and press ENT button

It will read the password you should wait for a few minutes

Configuring the system,

The current number of keys is 2, Press ENT button

Switch ignition off and it will configuring the system again

OBDSTAR X-100 Pro display the security password

You should press the UNLOCK button of the smart key to add keep it for 2sec within 15 sec, then release

Program success!

http://www.key-programmer.org/2016/11/30/program-ford-fiesta-2015-key-with-obdstar-x100-pro/

Program Mitsubishi Triton 2007 Remote by OBDSTAR Key Master

Here is the instruction on programming 2 remote control key on Mitsubishi Triton 2007 by using KD900 remote generator and OBDSTAR X300 Pro3 Key Master key programmer.

Vehicle model:

Mitsubishi Triton double cab 2007

Devices required:
KD900 remote maker

OBDSTAR X300 pro

2 remote keys

Background info:

The Mitsubishi Triton is a compact pickup truck produced by Mitsubishi. It was originally known as the Mitsubishi Forte in Japan from 1978 to 1986, when the name was discontinued as the pickup was not sold in its home market for a while. It returned to Japan in 1991 as the Strada. For most export markets the name L200 is used, though it also been known as the Rodeo, Colt,Storm,Magnum, L200 Strakar (badge used in Portugal since 1999, Strakar is a portmanteau of Strada and Dakar), and others. Currently the pickup truck is sold in every available Mitsubishi market except the United States, Canada, Japan, P.R.C., and South Korea.

Procedure:
Step 1: Generate Remote with KD900

Well connect KD900

Select Generate Remote

Select Mitsubishi->Thailand 433

Detect key information

Select Make Remote

Make remote success

Inserted to keyshell

Go back and select Simulate Device in KD900

Step 2: Program remote with Key Master

Connect OBDSTAR Key Master with vehicle via OBD socket

select Add remote

Turn ignition on with remote key
Select Type 1
select L200 Triton ->2010
select L200 Triton
Select from vehicle
Select Mitsubishi region: China-> Select from vehicle
select L200 Triton ->2010

Select Type 1

This Triton key has no chip
Select add remote (add only one remote)
All remotes will be erased

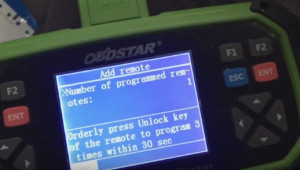

Number of programmed remotes: 0

Orderly press Unlock key of the remote to program 3 times within 30 sec
Then remote number turn to 1

Press down button for twice on KD900

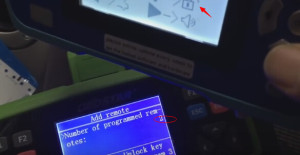

Number of programmed remotes: 2

Program Complete
Test remote.

http://www.key-programmer.org/2016/11/29/generate-2-remote-keys-for-mitsubishi-triton-2007/

Program Suzuki Swift 2013 Remote Key by OBDSTAR Key Master

Here is the step-by-step instruction on program Suzuki Swift 2013 Smart remote key push start without pin code by  OBDSTAR X300 Pro3 Key Master key programmer.

We have only 1 key, we need to program a new smart remote.

Select Suzuki

Select Suzuki V30.06
Select Smart key system

Select Alivio

Select Program smart key

Select Without PIN

After performing this function, all keys will be erased.
Press ENTER to continue,press ESC to return
We have only 1 key
Configuring the system,please wait…

All keys will be erased by OBDSTAR Key Master.

Security light goes on for waiting new key

Please input current year and month, eg. September 15,2016 and confirm

Stick smart key to the start button

Press ENTER

Have sound 2 beeps to register key

Security light go off

Program success, whether to program next one? Press ENTER to program Next

Program only 1 key , press ESC to exist

Done.

Turn ignition off before try to start car with new key.

http://www.key-programmer.org/2016/11/28/program-suzuki-swift-2013-smart-remote/

OBDSTAR Key Master Program Chevrolet Prisma Remote Key

Here is the instruction on programming remote key for GM Chevrolet New Prisma by using OBDSTAR X300 Pro3 Key Master auto key programmer.

In Brazil, there’s a Chevrolet model called the Prisma locally produced by General Motors in Gravatai.t’s basically the low-cost version of the Sonic, but it’s actually cool in its own way and, more importantly, it’s been updated for the 2015 model year and now it comes with lots of goodies for a tiny dribble of money.

Instruction:

Connect X300 Pro3 with vehicle via OBD socket

Select vehicle Brand:GM

Select Immo/Remote

Select Chevrolet

Select Cruze (there is no Prisma option under OBDSTAR Key Master Chevrolet list, select Cruze)

Select Without Smart

Select All keys lost

Enter security code and confirm

Switch ignition off for 5 sec, and then switch ignition on

Configuring the system, wait for about 10-minutes
Switch ignition off , remove the key

Open and close the driver door, confirm all electrical closed
Turn on the ignition switch.

Whether to program next key?
Switch ignition off , remove the key

Insert a new key, switch ignition on

Switch ignition off , remove the key

Open and close the driver door, confirm all electrical closed
Turn on the ignition switch

Whether to program next key?

Switch ignition off , remove the key

Open and close the driver door, confirm all electrical closed

Configuring the system, wait for about 45 sec

Turn on the ignition switch

Switch ignition off

Turn on the ignition switch
Program Complete

Start car with new programmed key
It is working.

https://eobd21.wordpress.com/2016/11/25/program-key-on-gm-new-prisma-by-obdstar-key-master/
