Download AnyDesk to OBDSTAR 5 inch Android Tablet

 Here is the guide to install AnyDesk program to OBDSTAR  5 inch Android tablets and Windows PC separately.





AnyDesk for Android

Applied to OBDSTAR X300 Pro4, Key Master 5, Odomaster 5 inch tablets



Launch “browser” app, visite: http://down.appobd.cn/anydesk

Click to download both two apk file

Open with ES Downloader

After download complete, Click “Open file”, Then click “Install”

Please install both anydesk_6.0.4.apk and adcontrol-5inch-aosp2.apk

if adcontrol-5inch-aosp2.apk not installed, The device can’t be control by computer.

Install completed on android.





AnyDesk for Windows



Visit https://anydesk.com/en/downloads/windows to download AnyDesk.exe for Windows PC

When device have incoming connect request, anydesk will show security warning, please accept.



http://blog.obdii365.com/2021/01/28/install-anydesk-to-obdstar-5-inch-android-tablet/

OBDSTAR Program Zafira B 2006 ID46 Remote Key

 Test report:

Successfully programmed (added) a new key to a Zafira B 2006 by obdstar x300 dp plus.
Id46 key
Pcf7941
2 buttons.
Blade: HU100
Successful pin read (need an internet connection)
Successful key programming
Remote centralization works.

Select IMMO function->Opel/Vauxhall-> Opel V30.55->Opel->Manual Select Model->Zafira B ->2005 up ->Read PIN Code->Display

Read 4-digit PIN code success

Select Blade->Program Keys

Turn on ignition switch
Enter pin code to access

Program complete



http://www.key-programmer.org/2021/01/27/program-zafira-b-2016-remote-key-with-obdstar-x300-dp-plus/

Solved! OBDSTAR "DiagProgam has Stopped Error

 To obdstar  users: regarding the problem “Unfortunately, DiagProgam has stopped.” that frequently appears recently, it is caused by compatibility issues.

A new apk version v3.8.1 has been released this week to solve this problem. (Note: The solution is applied to any of x300dp, x300 dp plus, odomaster, x300pro4.)



1. For the obdstar machine which update service is valid, you can directly upgrade the apk to solve this problem.



2. For the obdstar machine which update service expired, please clear the cache to solve the problem, the drawback is that this problem may occur repeatedly, because there is no way to upgrade the new apk v3.8.1 after the expiration, you have to clear the cache repeatedly.

Please look at the last paragraph on how to clear the cache.



And view obdstar DP Plus One Year Software Subscription



Attention Please:

Never restore factory settings, otherwise the software will be lost and there is no way to restore it.



Guide on how to clear the cache:



Enter ” DiagProgam”, long press it and drag it into “App Info”

In the APP info, tap “Clear data” and “Yes” to confirm.

Okay, the catche is cleared, and the problem is solved. However, please keep in mind, better continue subscribing the update service and update the newest APK.



obdstar tech from https://www.obdii365.com/

Program 2011 Opel Corsa D Key with OBDSTAR X300 DP Plus

 OBDSTAR X300 DP Plus successfully done a 2011 Opel Corsa D key programming.

Key in 2 buttons
ID46  PCF 7941
Blade Hu100.
Pin code recovery and anti startup programming and successful remote centralization.
On the other hand, an internet connection is required to recover the PIN.
Obdstar is able to pull the pin code no problem.

Just need the obdstar to be connected to the internet, so you can recover the pin code.

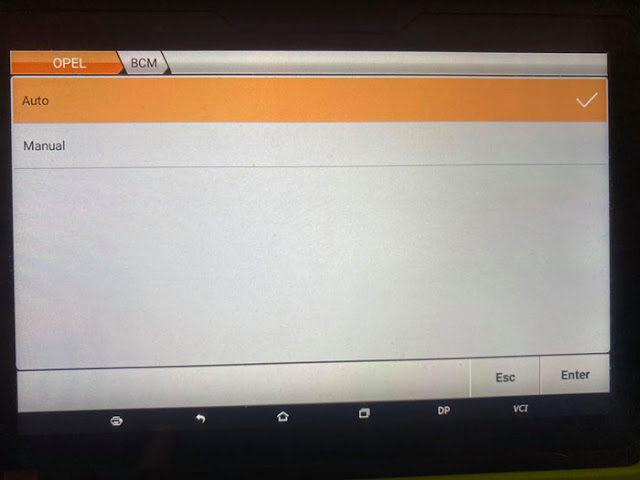

Go to IMMO->Europe->Opel->Opel V30.55->Manual Select Model->Corsa D->Read PINCode->BCM->Auto to read PIN
To program keys you select Blade type and Program keys

http://www.key-programmer.org/2021/01/25/obdstar-read-pin-adn-program-key-for-2011-opel-corsa-d/

How to Register and Update OBDSTAR MS50 Motorcycle Scanner?

 Is it worth to own one OBDSTAR MS50 Motorcycle Scanner? The answer is yes. So how is its hardware configuration? Is it easy to register and update for the first time? Is the software user friendly? When I have no idea what’s wrong with the tablet and my operation, can I contact the manufacturer in time to solve it? The answers are in this article, please go forward reading.



First comes with OBDSTAR MS50 hardware configuration:

1). From outlook to the main unit.



2). Next is the location of TF Car Slot, Speaker, charging port, USB interface, main wire port, Type C port, Power/ lock button.

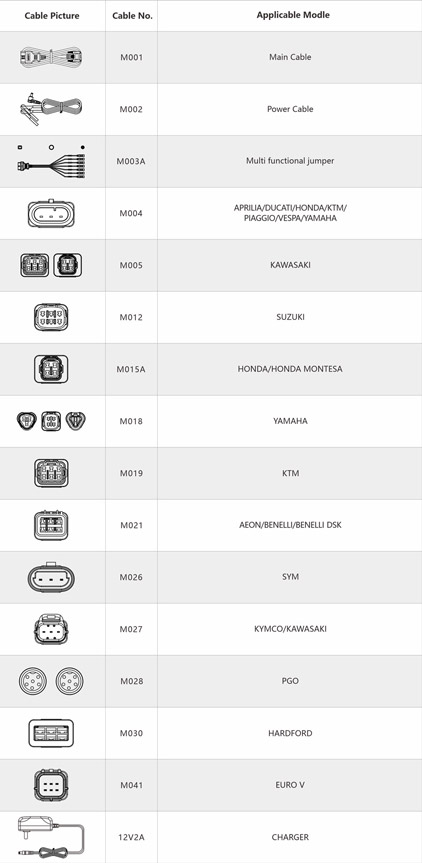

3). The big black box will contain all of adapters, cables and main unit.

The second image below will list all.



Next is on how to register and upgrade OBDSTAR MS50.

Connect power supply before registration.



Connect Wifi: find the available Wifi, input the password and ensure you see it is connected.



Tap “Personal Center” on the home menu – > Register (at the right corner of next page) -> Fill in user information including user name, password, valid email address, phone call, country, post code etc. Then register successfully.



Login now with your user name and password.



This is your personal Center information including My info, recharge credit, upgrade config, renewal fee, order history etc.



Then to upgrade OBDSTAR MS50.

Select all and tap “Bulk Update”, it will show “Upgrade complete”.



Back to “Support Center”, there are “Video”, “Manual” and “FAQ”.



Let’s enter “Manual”, it shows the user how to use MS50 scanner in the words and diagram.



Then “FAQ”, it lists some possible problems and solutions.



Finally, enter “Teamviewer” to see how to contact at OBDSTAR in time.

After it shows connected, it will show a ID.



Back to the home menu and enter “AnyDesk” (None TeamViewer user can use AnyDesk for remote assistance.

Alright, hope this article help you more understand OBDSTAR MS50 Motorcycle diagnostic tool.



Enjoy!

http://blog.obdii365.com/2021/01/13/obdstar-ms50-motorcycle-scanner-register-update/
