OBDSTAR DC706 Adds SID801 SID802 DCM3.7AP JMD602

 OBDSTAR DC706 BCM ECU TCU programmer released a huge update on Jan. 31st, 2024.



BCM Software V30.25

Add Read PinCode function for below models:
• FIAT BSI DELPHI 70F3237+93C86
• FIAT BSI DELPHI 70F3379+93C86
• FIAT BSI DELPHI 70F3632/70F3633
• FIAT BSI MAGNETI MARELLI 70F3237+95160
• FIAT BSI MAGNETI MARELLI 70F3378+95160
• FIAT BSI MAGNETI MARELLI 70F3633+95320
• FIAT BSI MAGNETI MARELLI ID46 912DG128 3K91D
• FIAT BSI MAGNETI MARELLI ID46 9S12DG256 1K79X
• FIAT BSI MAGNETI MARELLI MB91465P+95640
• FIAT BSI SIEMENS/CONTINENTAL 9S12DG128
• GM BCM DELPHI 70F3238+93C86
• GM BCM DELPHI 70F3379+93C86
• PSA BSI CONTINENTAL QOX SC667050+95256
• PSA BSI JC HOX EASYCAN4+29LV400BB+95128
• PSA BSI JC KOX EASYCAN4F1M-32+95128
• PSA BSI JC KEX SPC560B60+95128
• PSA BSI SIEMENS EOX D76F0018+95160
• PSA BSI SIEMENS FOX D76F0018+95160
• PSA BSI SIEMENS SOX 9S12DP512(1 L00M)+95128/95256
• PSA BSI VALEO NOX SC667152+95256
• PSA BSI VALEO POX 9S12DP512(4L00M)+95128/25128
• PSA BSI VALEO XOX 9S12XEP768(2M48H)+24C128

Add Reset ECU function for below models:
• GM BCM DELPHI 70F3238+93C86
• GM BCM DELPHI 70F3379+93C86
• PSA BSI SIEMENS EOX D76F0018+95160
• PSA BSI SIEMENS FOX D76F0018+95160

Add ReadA/Write INT flash, Read/Write INT eeprom functions for below models:
• FIAT BSI DELPHI 70F3556
• FIAT BSI DELPHI 70F3557



ECU Software V30.48

Add Read/Write EXT flash, ReadA/Vrite EXT eeprom, Read/Write History Image, Read PinCode and Reset ECU functions for below models:
• CITROEN SIEMENS SID 801 KLINE AM29F400BB+93C56
• CITROEN SIEMENS SID 801A KUNE AM29F400BB+93C56
• CITROEN SIEMENS SID 802 KUNE AM29F400BB+93C56
• CITROEN SIEMENS SID 804 KLINE AM29F400BB+93C56
• PEUGEOT SIEMENS SID 801 KLINE AM29F400BB+93C56
• PEUGEOT SIEMENS SID 801A KLINE AM29F400BB+93C56
• PEUGEOT SIEMENS SID 802 KLINE AM29F400BB+93C56
• PEUGEOT SIEMENS SID 804 KLINE AM29F400BB+93C56

Add Read/Write EXT flash, Read/Write EXT eeprom and IMMO OFF functions for below model:
• RENAULT SIEMENS EMS3134 AM29F400BB

Add Read/Write EXT flash, Read/Write EXT eeprom, Read/Write INT flash and Read PinCode functions for below model:
• OPEL MAGNETI MARELLI MULTIJET MJD 603 1.3 CAN Z13DTH MPC563+M58BW016DB+95320

Add Read/Write EXT flash, ReadA/Vrite EXT eeprom functions for below models:
• ALFA ROMEO BOSCH EDC15C7 KLINE 29F400BT+95P08
• AUDI BOSCH EDC16U31 MPC561(2)
• AUDI BOSCH EDC16U34 MPC561(2)
• BMW BOSCH EDC16C31 MPC561(2)
• CHRYSLER BOSCH EDC15C5 KLINE 29F400BT+95P08
• CHRYSLER BOSCH EDC16U31 MPC561(2)
• CITROEN BOSCH EDC16C34 MPC561(2)
• DODGE BOSCH EDC16U31 MPC561(2)
• FIAT BOSCH EDC15C7 KLINE 29F400BT+95P08
• FIAT BOSCH EDC16C34 MPC561(2)
• FORD BOSCH EDC16C34 MPC561(2)
• HONDA BOSCH EDC15C7 KLINE 29F400BT+95P08
• JEEP BOSCH EDC15C5 KLINE 29F400BT+95P08
• JEEP BOSCH EDC16U31 MPC561(2)
• KIA BOSCH EDC15C7 KLINE 29F400BT+95P08
• LANCIA BOSCH EDC15C7 KLINE 29F400BT+95P08
• MAZDA BOSCH EDC16C34 MPC561(2)
• MITSUBISHI BOSCH EDC16U31 MPC561(2)
• NISSAN BOSCH EDC16C41 MPC561(2)
• NISSAN BOSCH EDC16CP33 MPC561(2)
• OPEL BOSCH EDC16CP33 MPC561(2)
• PEUGEOT BOSCH EDC16C34 MPC561(2)
• PEUGEOT BOSCH EDC16CP33 MPC561(2)
• RENAULT BOSCH EDC16C41 MPC561(2)
• SEAT BOSCH EDC16U31 MPC561(2)
• SEAT BOSCH EDC16U34 MPC561(2)
• SKODA BOSCH EDC16U31 MPC561(2)
• SKODA BOSCH EDC16U34 MPC561(2)
• SMART BOSCH EDG15C-5.X KLINE 29F400BT+95P08
• SUZUKI BOSCH EDC16C34 MPC561(2)
• TOYOTA BOSCH EDC15C9 KLINE 29F400BT+95P08
• VOLKSWAGEN BOSCH EDC16U31 MPC561(2)
• VOLKSWAGEN BOSCH EDC16U34 MPC561(2)
• VOLKSWAGEN SIEMENS SIMOS 3PA 29F400BB+93C76
• VOLKSWAGEN SIEMENS SIMOS 3PB 29F400BB+93C76
• VOLKSWAGEN SIEMENS SIMOS 3PC 29F400BB+93C76
• VOLKSWAGEN SIEMENS SIMOS 3PD 29F400BB+93C76
• VOLKSWAGEN SIEMENS SIMOS 3PE 29F400BB+93C76
• VOLKSWAGEN SIEMENS SIMOS 3PG 29F400BB+93C76
• VOLVO BOSCH EDC16C31 MPC561(2)
• VOLVO BOSCH EDC16C34 MPC561(2)



Add Read/Write INT flash, Read/Write INT eeprom functions for below models:
• ALFA ROMEO BOSCH EDC17C49 TCI797
• ALFA ROMEO BOSCH MED17.3.5 TC1793
• ASTON MARTIN BOSCH MED17.7.5 TC1793
• AUDI BOSCH EDC17C74 TC1793S
• AUDI BOSCH EDC17CP54 TC1793
• AUDI BOSCH MED17.1.10 TC1793
• AUDI BOSCH MED17.1.21 TC1793
• BAIC BOSCH MED17 TC1728
• BENZ BOSCH EDC17C42 TC1767
• BENZ BOSCH EDC17C66 TC1793
• BENZ BOSCH EDC17CP46 TC1797
• BENZ BOSCH EDC17CP57 TC1793
• BENZ BOSCH EDC17CP60 TC1793
• BENZ BOSCH MED17.7.1 TC1797
• BENZ BOSCH MED17.7.2 TC1797
• BENZ BOSCH MED17.7.3 TC1797
• BENZ BOSCH MED17.7.3.1 TC1797
• BENZ BOSCH MED17.7.5 TCI793
• CHANGAN BOSCH MED17TC1728
• CHANGAN BOSCH MED17.9.63 TC1793
• CHERY BOSCH MED17 TC1728
• CHEVROLET BOSCH EDC17C59 TC1767
• CHRYSLER BOSCH EDC17C49 TC1797
• CITROEN BOSCH EDC17CP42 TC1797
• DACIA BOSCH EDC17C42 TC1767
• DALLARA BOSCH MED17.3.5 TC1793
• DODGE BOSCH EDC17CP46 TC1797
• FERRARI BOSCH MED17.3.5 TC1793
• FIAT BOSCH EDC17C42 TC1767
• FIAT BOSCH EDC17C49 TC1797
• FORD BOSCH DCU17PC43 TC1724N
• FORD BOSCH EDC17CP42 TC1797
• GEELY BOSCH MED17 TC1728
• GEELY BOSCH MED17.8.2 TC1767
• GEELY BOSCH MED17.8.3 TC1797
• GREATWALL BOSCH MED17 TC1728
• HONDA BOSCH MED17.9.3 TC1793
• INFINITI BOSCH MED17.7.2 TCI797
• ISUZU BOSCH DCU17PC43 TC1724N
• ISUZU BOSCH MD1CS089 TC299TP
• IVECO BOSCH DCU17PC43 TC1724N
• IVECO BOSCH EDC17C49 TC1797
• JAC BOSCH MED17 TC1728
• JAGUAR BOSCH EDC17CP42 TCI 797
• JAGUAR BOSCH MED17.8.31 TC1797
• JAGUAR BOSCH MED17.9.7 TC1767
• JAGUAR BOSCH MEDC17.9 TC1793
• JEEP BOSCH EDC17C49 TC1797
• KIA BOSCH EDC17C57 TC1793
• LANCIA BOSCH EDC17C49 TC1797
• LANDROVER BOSCH EDC17CP42 TC1797
• LANDROVER BOSCH EDC17CP55 TC1793
• LANDROVER BOSCH MED17.8.31 TC1797
• LANDROVER BOSCH MED17.9.7 TCI767
• LANDROVER BOSCH MEDC17.9 TC1793
• LIFAN BOSCH MED17 TC1728
• MASERATI BOSCH MED17.3.4 TC1797
• MASERATI BOSCH MED17.3.5 TC1793
• MG BOSCH MED17 TC1728
• MITSUBISHI BOSCH EDC17C49 TC1797
• NISSAN BOSCH EDC17C42 TC1767
• OPEL BOSCH EDC17C42 TC1767
• OPEL BOSCH EDC17C59 TC1767
• PEUGEOT BOSCH EDC17C49 TC1797
• PEUGEOT BOSCH EDC17CP42 TC1797
• RENAULT BOSCH EDC17C42 TC1767
• SAIC BOSCH MD1CS089 TC299TP
• SAIC BOSCH MED17 TC1728
• SEAT BOSCH EDC17C74 TC1793S
• SEAT BOSCH MED17.1.21 TC1793
• SKODA BOSCH EDC17C74 TC1793S
• SUZUKI BOSCH EDC17C49 TC1797
• SUZUKI BOSCH MED17.9.63 TC1793
• SUZUKI DENSO 1N83M
• VAUXHALL BOSCH EDC17C42 TCI 767
• VAUXHALL BOSCH EDC17C59 TCI767
• VOLKSWAGEN BOSCH EDC17C74 TC1793S
• VOLKSWAGEN BOSCH EDC17CP54 TC1793
• VOLKSWAGEN BOSCH MED17.1.21 TC1793

Add Read/Write INT flash functions for below models:
• HYUNDAI DELPHI DCM3.7AP SH725XX
• KIA DELPHI DCM3.7AP SH725XX

Add Read/Write INT flash Idle speed repair functions for below model:
• HONDA KEIHIN PGM Fl SH7058

Add Read/Write EXT eeprom, Read/Write INT eeprom, Read/Write INT flash and Read ISN Code functions for below model:
• BMW CONTINENTAL MSV80 TC1796+ST95640

Add Read PinCode function for below model:
• OPEL MAGNETI MARELLI MULTIJET MJD 602 1.3 CAN Z13DTH MPC563+M58BW016DB+95320.

Add Modify VIN and Reset(Virgin) functions for below model:
• BOSCH ME17.9.23 TC1724N

Add VW ME17/MED17 Odometer Recalibration functions

OBDSTAR X300 DP Plus Reset 2017 Ford Mustang Airbag Crash

This post is a recent experience doing a crash reset with my OBDSTAR X300 DP Plus on a 2017 Ford Mustang. I did it by OBD and module stop communicating after the eeprom write. I bought a used module, which also had crash data but did it on bench and worked just fine. We all know there is always risks associated with crash reset, but always try to minimize said risks by using the most secure method even if it means having to remove the module from the vehicle.

I've done a bunch of resets via OBD successfully, I love this tool, but hopefully this post will help other people avoid having to source a replacement module due to going bad.

OBDSTAR DC706 Adds DQ200 DQ250 DQ500 DQ501 Odometer Correction

 OBDSTAR DC706 released new TCU gearbox version V30.19.

 adds DQ200, DQ250, VL381, DL501, DQ500 (0BH) continental gearbox TCU odometer correction.

OBDSTAR iScan Ducati Adds Panigale V2 2020 Streetfighter V2 2022

 OBDSTAR iScan Ducati diagnostic scanner released new software V40.10.

Add following models:

1199 Panigale 2012-2014

1199 Panigale R 2012-2014

899 Panigale 2014-2015

1299 Panigale 2015

Panigale R 2015

Multistrada 1200 Pikes Peak Brazil 2013-2015

Multistrada 1200 PS/T Brazil 2013-2015

959 Panigale 2016

1299 Superleggera 2017

1299 Panigale R Final Edition 2018

Panigale V2 2020

Streetfighter V2 2022

OBDSTAR DC706 Clone GM E69 ECM on Bench

 OBDSTAR MP001 is a kit specifically for DC706 programmer. What the MP001 does is pretty much what the P003 adapter does. It gives you more range to be able to connect to different PCMs. The standard breakout cable that comes with the DC706 you can connect and clone many different ECMs. but some ecms require a certain amount of input ports or output ports that you need to connect to be able to access them. There are certain PCMs for example you need to get to their boot mode to be able to access them.

The standard cable does not have those connections so that’s what the P003 adapter.



Here is an example of cloning GM MED9.6.1 ECU using DC706.

What’s needed:

OBDSTAR DC706

OBDSTAR MP001 programmer

OBDSTAR P003+ adapter

Go to ECU Flasher in the main program
Select ECM for cars
DC706 has a built-in Bosch ECU database. So go to Query Bosch Number.
The query function requires network connection. Connect network.
Input Bosch number, i.e 0261S02773 then it will tell you the correct Bosch type. The chipset here is MED9.6.1.

Let’s go over brands. Select Chevrolet and search MED9.6.1

DC706 brings up two of them.

You can click on them and see which one is the correct

The first one we see is an E77 ECM, the second one shows it is an E69 ECM. The second one is what we need.

Check wiring diagram of MED9.6.1 MPC561(2)

There are two pinouts which means there are two variations of this ECM.
We don’t know which one is ours so just going to try the first one because you can see the GPT1 and GPT0 connect on 1st pinout.

Read the cloning instructions and connection diagram of MP001 and P003+ adapter

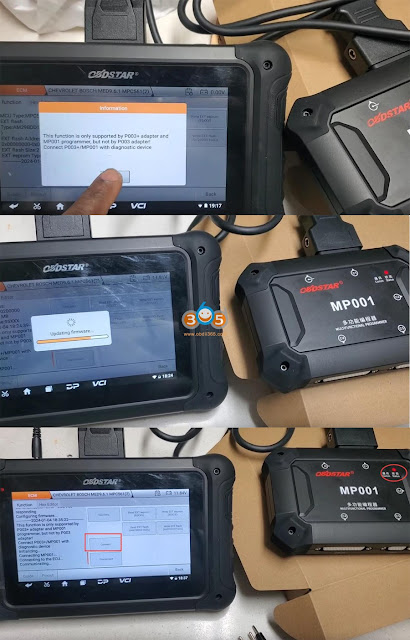

This function is only supported by P003+ adapter and MP001 Programmer.

Then we connect DC706, MP001, P003+ with E69 ECM as image below.

If DC706 says connecting MP001 and configuring firmware, but actually it never configures firmware. OBDSTAR released a patch to fix this issue and it worked finally.

Go ahead and do Connect.

We got everything hooked up. Now it is connecting with MP001. The indicator on the MP001 turns on.

It is now available to go ahead. We can read and write from the E69 ECM.

Read and save EXT eeprom

Read and back up EXT flash

It takes longer time to read EXT flash.

Go to Hexeditor, that will be the flash loaded right there into the hex editor.

Load eeprom so we can look at the eeprom data and make a change to the actual VIN number and try to write it back.

You can see the VIN number and it ends with 717

Let’s go ahead and change that VIN number 7 to 8 to do a quick test and write it to the ECM.

Let’s change it to 38. That’s the hex equivalent for 8 as you can see we change it to 38 from 37 which reflects in VIN number 718.

Then save the modified eeprom.

Go to function, Write EXT Eeprom.

We can just use the modified data (load the Hex editor data) we just did in the hex editor. If we didn’t save it you can go to load external data.

It skips two sectors and didn’t write any changes which means it didn’t see any changes.

Let’s go back and see the path on the original file.
So what happened was when i did a save but it still has the original file open, so i would have to go to load
if i wanted to do it by the hex editor like what the option we just did.
I would have to pick the actual file (modified eeprom) that just saved.

I could have also alternatively, it would make probably more sense just to load external data to not cause mistake

DC706 did write a change on sector 1 and 2.

Go ahead and read EXT eeprom again and save data

Now we got to the Hex editor. It loaded the modified eeprom we just saved.
We should have our change at VIN number.

The VIN number is changed.

You would then take our donor replacement ECM. Connect it with OBDSTAR DC706, MP001 and P003+ following the
wiring diagram.
Go back to function. Then you would select write flash first.
You would pick load external data and load the flash file that you backed up.
Then it will write it to donor ECM.
Then you would write the eeprom.
Once you write those two files to the donor E69 ECM, you’ve made a clone of this ECM.
You would be able to plug both ECMs into that vehicle and the vehicle should be able to start without any issues.

OBDSTAR P003+ vs P003

 What is the difference between OBDSTAR P003 and P003+ adapter?

Both adapters are used with OBDSTAR DC706 to read ECM/ECUs.



The P003+ adapter handles up to 4 right inputs, the normal P003 only has two.
It is doubled on the P003+ and P003+ has faster clock frequency than P003.

That’s one of the main differences.

OBDSTAR P003+ is compatible with P003 and supports the following models that require a higher frequency clock during the decryption process (ME9.0, MED9.1, MED9.6.1, ME9.6.1, MED9.5.10, EDC16C39, EDC16CP35, EDC16C8).

If DC706 says the function only supported by P003+ adapter and MP001, you cannot use normal P003.

FYI:

OBDSTAR MP001 handles up to 12 inputs and it has a faster clock frequency than P003/P003+.

Also, the MP001 has other capabilities as well it can also read eeproms and a couple of other things.





Read also:

OBDSTAR DC706 Clone GM E69 ECM via MP001 and P003+

OBDSTAR DC706 Adds Hyundai Kia SIM2K-250 SIM2K-251

 OBDSTAR DC706 ecu programmer released a huge software update on December 29th, 2023.



TCM ECU Flasher Update V30.18

Add Read/Write INT eeprom/flash functions for below models:
• HYUNDAI SIEMENS/CONTINENTAL SIM2K-251 TCM(TC1724)+ECM(TC1782)
• KIA SIEMENS/CONTINENTAL SIM2K-251 TCM(TC1724)+ECM(TC1782)
• HYUNDAI SIEMENS/CONTINENTAL SIM2K-250(AT) TCM(TC1724)+ECM(TC1782)
• KIA SIEMENS/CONTINENTAL SIM2K-250(AT) TCM(TC1724)+ECM(TC1782)

Add Read/Write INT flash, Read/Write EXT eeprom functions for below models:
• AUDI TEMIC DQ250CXX TCM MPC555+95160
• SEAT TEMIC DQ250CXX TCM MPC555+95160
• SKODA TEMIC DQ250CXX TCM MPC555+95160
• VOLKSWAGEN TEMIC DQ250CXX TCM MPC555+95160

ECM ECU Flasher Update V30.39

Add Read/Write EXT eeprom, Read/Write EXT flash functions for below models:
• ALFA ROMEO SIMTEC 75.3 KLINE 29F400BT
• BENZ SIEMENS/VDO MSM AM29F200BB
• BMW SIEMENS EMS5150 KLINE 29F400BB
• FORD SIEMENS SID 803A AM29BDD160GB+95320
• KIA SIEMENS SIMK42 29F200BT
• MAZDA SIEMENS SIM210 AM29F400BB+93C86
• MAZDA SIEMENS SIM22 AM29F400BB+93C86
• MAZDA SIEMENS SIM29 AM29F400BB+93C86
• MINI SIEMENS EMS5150 KLINE 29F400BB
• VOLVO SIEMENS SID 803A AM29BDD160GB+95320

Add Read/Write EXT eeprom, Read/Write EXT flash, Read/Write INT flash functions for below models:
• FORD SIEMENS SID 803 MPC555+AM29BL802CB+95320
• LANDROVER SIEMENS SID201 MPC563+M58BW016DB+95320
• VOLVO SIEMENS SID 803 MPC555+AM29BL802CB+95320

Add Read/Write EXT eeprom, Read/Write EXT flash, Read/Write INT flash, Read/Write History Image functions for below models:
• CITROEN SIEMENS SID 803 CAN MPC555+AM29BL802CB+95320
• PEUGEOT SIEMENS SID 803 CAN MPC555+AM29BL802CB+95320.

Add Read/Write EXT eeprom, Read/Write EXT flash, IMMO OFF functions for below models:
• DACIA SIEMENS EMS3132 AM29F200BB
• DACIA SIEMENS SIRIUS 32 AM29F200BB
• DACIA SIEMENS SIRIUS 32N AM29F200BB
• LADA SIEMENS EMS3132 AM29F200BB
• NISSAN SIEMENS EMS3132 AM29F200BB
• NISSAN SIEMENS SIRIUS 32 AM29F200BB
• NISSAN SIEMENS SIRIUS 32N AM29F200BB
• RENAULT SIEMENS EMS3132 AM29F200BB
• RENAULT SIEMENS SIRIUS 31H AM29F200BB
• RENAULT SIEMENS SIRIUS 32N AM29F200BB

Add Read/Write INT eeprom, Read/Write INT flash functions for below models:
• ALPHINA BOSCH MG1CS201 TC298TP
• AUDI BOSCH MG1CS002 TC298TP
• BENTLEY BOSCH MG1CS002 TC298TP
• BMW BOSCH MD1CS001 SPC5777
• CITROEN BOSCH MG1CS042 TC298TP
• DS BOSCH MG1CS042 TC298TP
• FORD BOSCH EDC17C70 TC1793F
• FORD BOSCH EDC17CP05 TC1797
• FORD BOSCH EDC17CP65 TC1793F(S)
• FORD BOSCH MED17.0.1 TCI767
• FORD BOSCH MED17.0.7 TC1782
• FORD CONTINENTAL EMS2204 TC1738
• FORD CONTINENTAL EMS2208 TC1767
• FORD CONTINENTAL EMS2212 TC1767
• FORD CONTINENTAL EMS2213 TCI767
• FORD CONTINENTAL EMS2214 TC1767
• FORD CONTINENTAL EMS2301 TC1724N
• FORD CONTINENTAL EMS2302 TC1724N
• FORD CONTINENTAL EMS24XX TC1791S
• FORD CONTINENTAL EMS2510 TC1791S
• FORD CONTINENTAL EMS2511 TC1791S
• FORD CONTINENTAL EMS2512 TC1791S
• FORD CONTINENTAL EMS2513 TC1791S
• FORD CONTINENTAL SID211 TC1791S
• GENESIS SIEMENS/CONTINENTAL SIM2K-260 TC1791S
• HYUNDAI CONTINENTAL SIMK42 29F200BT
• HYUNDAI KEFICO CPEGP2.10.X TC1728
• HYUNDAI SIEMENS/CONTINENTAL SIM2K-250(AT) TC1724+TC1782
• HYUNDAI SIEMENS/CONTINENTAL SIM2K-250(MT) TC1782
• HYUNDAI SIEMENS/CONTINENTAL SIM2K-251 TC1724+TC1782
• HYUNDAI SIEMENS/CONTINENTAL SIM2K-253 TC1782
• HYUNDAI SIEMENS/CONTINENTAL SIM2K-260 TC1791S
• KIA KEFICO CPEGP2.10.X TC1728
• KIA SIEMENS/CONTINENTAL SIM2K-250(AT) TC1724+TC1782
• KIA SIEMENS/CONTINENTAL SIM2K-250(MT) TCI782
• KIA SIEMENS/CONTINENTAL SIM2K-251 TC1724+TC1782
• KIA SIEMENS/CONTINENTAL SIM2K-253 TCI782
• KIA SIEMENS/CONTINENTAL SIM2K-260 TC1791S
• LINCOLN CONTINENTAL EMS24XX TC1791S
• MINI BOSCH MD1CS001 SPC5777
• OPEL BOSCH MG1CS042 TC298TP
• PEUGEOT BOSCH MG1CS042 TC298TP
• PORSCHE BOSCH MG1CS002 TC298TP
• SKODA BOSCH MG1CA811 SPC5898
• TOYOTA BOSCH MG1CS003 SPC5777
• TOYOTA BOSCH MG1CS201 TC298TP
• VOLKSWAGEN BOSCH MG1CA811 SPC5898
• VOLKSWAGEN BOSCH MG1CS002 TC298TP

Add Read/Write INT eeprom, Read/Write INT flash , Read ISN Code functions for below models:
• BMW BOSCH MG1CS003 SPC5777
• BMW BOSCH MG1CS201 TC298TP
• MINI BOSCH MG1CS201 TC298TP

Add Read/Write INT flash function for below models:
• FORD VISTEON DCU101 ST10F276
• FORD VISTEON DCU104 ST10F276
• FORD VISTEON DCU108 ST10F276
• FORD VISTEON DCU201 ST10F276
• FORD VISTEON DCU208 ST10F276
• FORD VISTEON DCU209 ST10F276
• HYUNDAI DELPHI DCM7.1AP TC277T
• KIA DELPHI DCM7.1AP TC277T
• LANDROVER VISTEON DCU106 ST10F276

Add Read ISN Code function for below models:
• BMW BOSCH MED17.2 TC1796+S29CD032J
• BMW BOSCH MEVD17.2.4 TC1797
• BMW BOSCH MEVD17.2.5 TC1797
• BMW BOSCH MEVD17.2.6 EXX TC1797
• BMW BOSCH MEVD17.2.6 FXX TC1797
• BMW BOSCH MEVD17.2.8 TCI797
• BMW BOSCH MEVD17.2.9 TCI797
• BMW BOSCH MEVD17.2.G TC1797
• BMW BOSCH MEVD17.2.H TC1797
• BMW BOSCH MEVD17.2.K TC1793
• BMW BOSCH MEVD17.2.P TC1797
• MINI BOSCH MED17.2 TC1766
• MINI BOSCH MEV17.2 TC1796+S29CD032J
• MINI BOSCH MEVD17.2.KTC1793

Add Read/Write Maps function for below models: (on BENCH, read without opening the cover)
• CHRYSLER CONTINENTAL GPEC2 MPC5566+95320
• DODGE CONTINENTAL GPEC2 MPC5566+95320
• FIAT CONTINENTAL GPEC2 MPC5566+95320
• JEEP CONTINENTAL GPEC2 MPC5566+95320
• LANCIA CONTINENTAL GPEC2 MPC5566+95320
• VOLKSWAGEN CONTINENTAL GPEC2 MPC5566+95320

www.obdii365.com
