OBDSTAR Honda Motorcycle ECU Tuning and Remap List

With OBDSTAR Motor special kit, MS80/MS70 supports Honda motorcycle ecu chip tuning and remap function.

OBDSTAR Honda motorbike ecu remap coverage:

Model	Year	ECU Model	ECU ID	Function
FUTURE/WAVE RSX 110	2010-2013	38770-KYZ-T03	0100FB0E02	ORIGINAL REMAP +3% REMAP +4%
LEAD 110/SCR 110	2010-2012	38770-GGE-901	0100B41101	ORIGINAL REMAP +3% REMAP +4% REMAP -2% REMAP -3% REMAP -4% OFF IACU OFF O2
AIR BLADE	2008-2010	38770-KVG-V21	0100C81101	ORIGINAL REMAP +3% REMAP +4% REMAP -2% REMAP -3% REMAP -4% OFF IACU OFF O2
AIR BLADE THAI LAN	2008-2010	38770-KVG-A31	01009A0D01	ORIGINAL REMAP +3% REMAP +4% REMAP -2% REMAP -3% REMAP -4% OFF IACU OFF O2
LEAD 110	2011-2012	38770-GGE-941	01006D1101	ORIGINAL REMAP +3% REMAP +4% REMAP -2% REMAP -3% REMAP -4% OFF IACU OFF O2

How to Add Audi Q5 2012 Key with OBDSTAR X300 DP Plus?

 How-to: program Audi Q5 2012 remote key by obdstar x300 dp plus via OBD successfully.

Procedure:

Step 1: Read Immo data

Step 2: Make dealer key

Step 3: Program keys/Learn Key



Go to Audi software V35.14 -Audi- Manual Select System- 5th generation IMMO- A4 A5 Q5- Read Immo Data

Turn on ignition switch
Read and save immo data

Select Make Dealer key

Select eeprom data just saved
make sure you have connected p001 with x300dp plus

place a new key to p001 programmer
Select Program Keys

Select eeprom data just saved

Input key number desired to read: 2
Turn on igniswion switch, press ENTER
insert new key and turn on ignition switch, if smart key, our the backside of the key to Start button and turn OFF-> ON key to recognize key
recognize key and learn key

Test the new key

Done.

http://www.key-programmer.org/2022/07/20/obdstar-x300-dp-plus-adds-audi-q5-2012-5th-immo-key/

OBDSTAR OdoMaster Change 2016 VW Polo 6C MQB Mileage

How to correct odometer on a 2016 Volkswagen Polo 6C using OBDSTAR OdoMaster Mileage Correction tool via OBD-Port (VDO/Continental cluster).

original mileage: 75888km

Go to Mileage Adjustment, select MQB 2014.05-

Confirm current mileage is correct

Entre mileage you desired to change i.e 75905km and confirm

Turn ignition on, if it is smart key, put the key close to emergency start position

the dashboard will turn black which is normal

correct mileage in procedure

change mileage succeeded.

OBDSTAR Adds VW Golf 7 2017 KeylessGo Smart Key

 VW Golf 7 2017/2018 KeylessGo add key successfully done by obdstar x300 dp plus and xhorse smart key.



For MQB with blade you need original key only.

If it is smart keylessgo you can use this precoded. MQB KeylessGo 434 V3 is working.

Golf VII 2017 and 2018 work perfectly.



Procedure:

Read eeprom and save. Always backup data before operation.

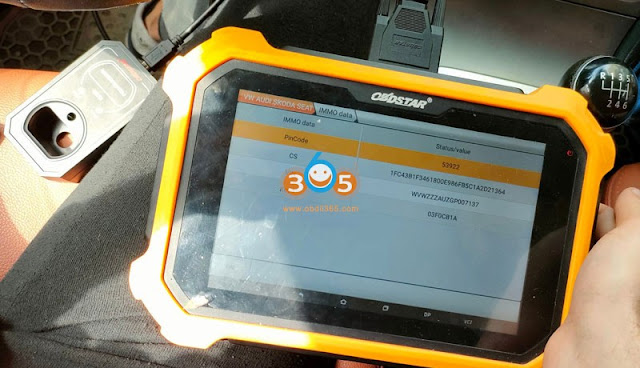

1). Read immo data. Get CS, PIN and VIN. If failed to read immo data, do the correct procedure and keep trying. Quit operation if it cannot read immo data.

2). Make dealer key, read original key then put new xhorse key

Make dealer key with obdstar using xhorse key, for smart keylessgo only.

3). Program key.
