OBDSTAR DC706 Read Ford SID208 on Bench

 OBDSTAR DC706 Read and write Ford Ranger 2.2 SID208 ECU on bench successfully.

Ford Continental SID208 TC1797.

Read and write ECU on bench using P004 adapter.

www.obdii365.com

OBDSTAR P50 G3 Adds R7F701A033 Airbag Reset

OBDSTAR P50 or G3 with airbag reset license update new airbag reset software V30.95 on July 1st, 2024.

1. Add 151 part NO. again!!! (12000+part No. supported)

Added support for the R7F701A033 [Read All Data(BENCH)], [Write All Data(MPOOI) Original Data] and [Write All Data (MP001) Auto Repair] function for all vehicle models;

Add 114 part numbers for the below models to support airbag reset:

• ACURA 93C76.95640 (3 part No.);

• AITO R7F701A033 (1 part No.);

• ASTONMARTIN 9S12DG128 (1 part No.);

• AUDI CR16HCS9 (1 part No.);

• BAIC R7F701008 (1 part No.);

• CHANGAN R7F701A033 (2 part No.) :

• CHERY R7F701009.XC2336B-40F (3 part No.);

• CHEVROLET 95160 (4 part No.);

• FIAT TC23XX-32F (1 part No.);

• FORD 95320,R7F701009, R7F701A033, TC22XX-16F, XC2336A (8 part No.);

• GEELY 95320,R7F701009,TC222S-16F,XC2336A-72F (7 part No.);

• GREATWALL SPC560P40,XC2336A (7 part No.);

• HONDA 95320,95640,SPC560P50,SPC56Ap54,TC234LP-32F,TMS320 (13 part No.);

• HYUNDAI 95512,R7F7015803JC22XX-16F.TC23XX-16FJC23XX-32F (12 part No.);

• KIA 95256,95512,R7F701019,R7F701042,R7F7015803 (9 part No.);

• LEAPMOTOR R7F701009 (1 part No.);

• LEXUS R7F701A223 (4 part No.);

• MAZDA TC23XX-16F (2 part No.);

• MITSUBISHI 95640 (2 part No.);

• NISSAN 95128,95640,TC22XX-16F (8 part No.);

• PEUGEOT 95320,SPC560P50,SPC56Ap54 (5 part No.);

• RENAULT 95160.XC2336B (3 part No.);

• ROEWE TC224L-16F (4 part No.);

• SGMW R7F70100X (2 part No.);

• SUZUKI (1 part No.);

• TOYOTA H8SX1725, H8SX1797, R7F7016443, R7F701A223 (7 part No.);

• TRUMPCHI R7F701A033 (1 part No.);

• VW 08AZ32 (1 part No.);

Add 37 part numbers for the below models to support Read/Erase DTC: 8

• DAIHATSU 95640 (9 part No.);

• FAW R7F7010643 (1 part No.);

• FIATTC23XX-32F (2 part No.);

• GREATWALL R7F7010643 (1 part No.);

• JEEP 95256 (1 part No.);

• LEXUS 93C56 (2 part No.);

• PEUGEOT TC222S-16F(1 part No.);

• TOYOTA 25040,93C56,93C57,93C66,95040,95080, CYT2B93BAC, R7F7016863, R7F701A313 (19 part No.);

• VW TC23XX-32F (1 part No.).

2. Optimized some types [Pinout];

Optimized CHERY R7F70100X [Erase Crash] process;

Optimized GREATWALL SPC560P40 [Erase Crash] process;

Optimized ROEWE/MG TC22XX-16F [Erase Crash] process.

OBDSTAR DC706 Read VW Jetta MED17.5.6 CS and PIN

 An expert shared another way to get VW Jetta MED17.5.6 ECU CS and PIN Code for all keys lost without pulling the cluster.



Use OBDSTAR DC706 to read eeprom and flash on a 2011 VW jetta ME17.5.6 then used the immo decoder function and got the CS and pin code from the ecu. Much easier to do all keys lost this way than pulling the cluster.

DC706 read eeprom and flash, then hit immo data calculation. then it gives you CS, PIN and MAC.

Immo data decryption gives you the pin and CS.

The DC706 has the decoder function on it It also reads immo data, so you can upload that in your key programmer and make a dealer key.

This is a hell of a lot easier than pulling the cluster.



The key works with 00 7th byte CS, then manually programmed remote. All you have to do is put the CS and PIN and it is programmed.
The key worked perfectly.

DC706 only gives CS 6 Bytes. If 00 7th CS byte didn’t work, pull out dashboard to get full immo data (30 mins).





Here is another example on VW MED175.25 ECU, you can also read immo data, decode CS and PIN.

OBDSTAR DC706 Read Citroen BSI S02 and PIN Code

Citroen Berlingo 2.0

BSI S02 read and write with OBDSTAR DC706 successfully.

Read pin code ok.

BSI Type: BSI Siemens S0X 9S12DP512 (1L00M) +95128/95256

Using I/O terminal pinout.

Images attached:

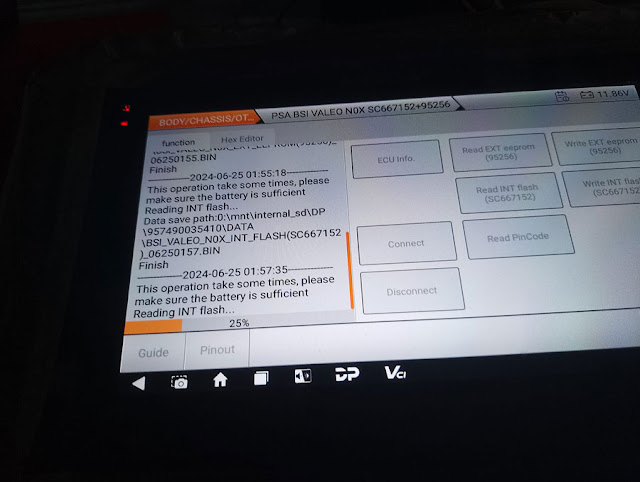

OBDSTAR DC706 Read Peugeot 407 BSI N05 Pin Code

Obdstar DC706 read and write Peugeot 407 cluster Bsi N05, read pin code ok.

Platform test on bench correct mileage.

OBDSTAR G3 Read Ford SID208 ECU on Bench

 OBDSTAR will read and write Ford SID208 SID209 SID211 ECUs on bench without problems.

Here take OBDSTAR X300 Classic G3 as an example. G3 requires ECU/TCU/BCM flasher software activated. OBDSTAR DC706 can do this as well.



Go to ECM,  quick search Ford Continental SID208 TC1797

Check wiring diagram

Select Bench mode with P004 adapter

This function needs to access the server. Enable network connection.
Press Connect ECU.
Switch the ignition on then switch ignition off on P004 adapter.

OBDSTAR G3 connects ECU successfully.

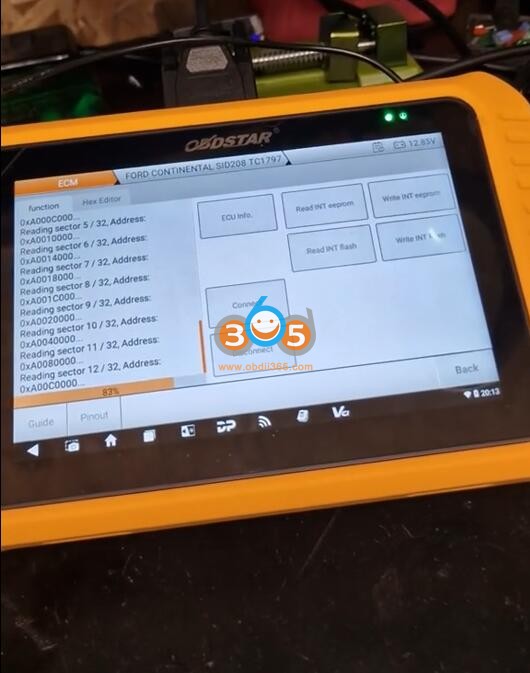

Read INT eeprom
Read eeprom successfully and save data.

Read INT flash data

Then you can write INT eeprom and INT flash.

OBDSTAR X300 Classic G3 Read Opel ME7.6.2 ECU

OBDSTAR X300 Classic G3 user feedback:

Read and write Opel/Vauxhall Bosch ME7.6.2 Kline ST10F275+ 95080 ecu on bench successfully.

Select Bosch ME7.6.2 Kline ST10F275+ 95080 ECU.

Check wiring diagram.

Connect ECU with P004 adapter and G3.

Choose Bench mode with P004 adapter.

Connect ECU.

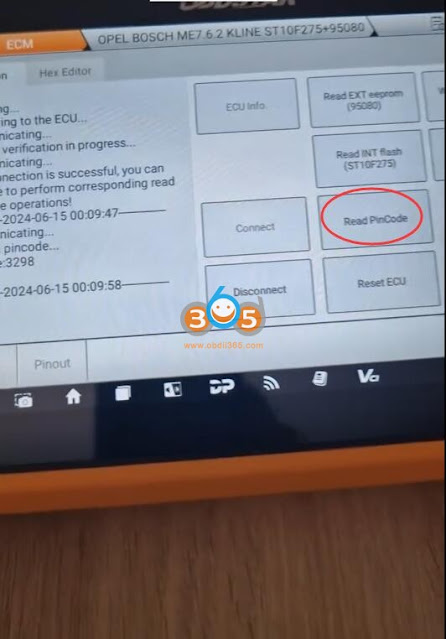

Read pin code.

Read Flash.

Then write ECU.

Images attached:

OBDSTAR iScan Ducati 2019 Panigale V4 Oil Reset

 Last year I purchased an OBDStar iScan Ducati diagnostics tablet.

This can do a variety of tasks:

• Reset service lights for oil, annual and Desmo service
• Read and reset error codes
• Activate OEM accessories, such as heated grips and spotlights, on modern CANBUS bikes

I've reset both annual and Desmo service lights on my Multistrada and 2019 Panigale V4  as well as read and reset error codes when my rear wheel speed sensor threw a wobbly and lit the dash up like a Christmas tree. The dash warning went away after a few ignition cycles but I read the error code when I got home. I was cable to clear the annoying annual service form the bike's display.

I have the software revisions up until the end of May last year, as it covers my bike fully I'm not intending to upgrade this. I do have three connectors; the older 3 pin, the more common 4 pin (as shown in the video below) as well as the most recent 6 pin Euro 5. These should cover all models capable of being plugged into diagnostics.

For the price of the annual service at my dealership. I got the iscan and necessary cable for the Ducati OBD port and it accomplished what i wanted plus i can also run diagnsotscs on the bike as well as several

other functions.

When I got to the ”reset annual service “ and “reset oil service” under the special functions tab and they didn’t work I think I gave up out of frustration.
When I did reset the “annual service” under the meter tab it reset the oil service light and mileage interval on the bikes display at the same time.

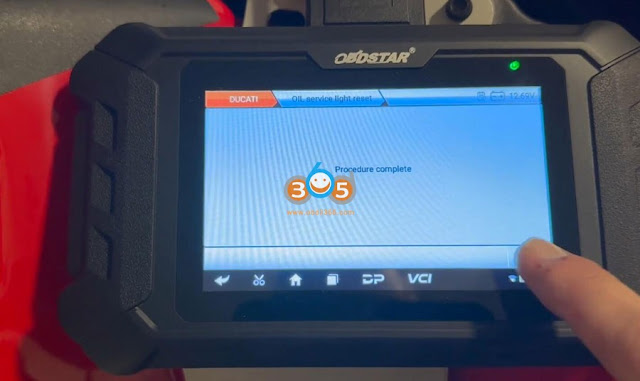

Example: oil reset on Ducati Panigale V4 MY2019.
