OBDSTAR X300 DP Plus Adds FERRARI Key Programming

OBSDTAR X300 DP Plus and Key master DP Plus released new FIAT FERRARI IMMO software [V32.83] on March 1st, 2024.

Details Added

Add proximity key programming function for below models:

• FERRARI 296

• FERRARI ROMA

• FERRARI 488

• FERRARI GTC4 LUSSO

• FERRARI 812

• FERRARI J50

• FERRARI PORTOFINO

• FERRARI LAFERRARI

Add blade key programming function for below models:

• FERRARI 599

• FERRARI ENZO

• FERRARI F60 AMERICA

 • FERRARI FF

• FERRARI J50

• FERRARI LAFERRARI

 • FIAT ASIA PETRA

• FIAT EUROPE PETRA

OBDSTAR DC706 Update Hyundai Kia SIM2K-260

OBDSTAR DC706 released a big update on March 1st, 2024.

TCM V30.20 Software

Add Read ECU Information, Recalibrate Driving Time functions for below model:

• DL382

Add Read ECU Information function for below models:

• DL501(0B5)_Gen2

• DQ200_G2

• DQ200_G2_PQ

• DQ250(02E/0D9)

• DQ250CXX

• DQ380(0DE)

• DQ381(0DE)

• DQ400E

• DQ500(0DE) BOSCH

• DQ500(0BH) CONTINENTAL

• VL381(0AW)

Details Optimized Optimized Software

ECM ECU V30.52 Software

Details Added

Add Read/Write INT eeprom functions for below model:

• RENAULT MAGNETI MARELLI IAW 6R.20 TMS370C036

Add Read/Write INT flash, Read/Write INT eeprom functions for below models:

• AUDI CONTINENTAL SIMOS18.10 TC1791

• CHANGAN BOSCH ME17.8.8 BLACK TC1728

• FORD CONTINENTAL EMS2205 TC1766

• GENESIS SIEMENS/CONTINENTAL SIM2K-260 TC1791S(BOOT)

• HYUNDAI BOSCH EDC17C08 TC1766

• HYUNDAI BOSCH MEG17.9.13 TC1766

• HYUNDAI SIEMENS/CONTINENTAL SIM2K-260 TC1791S(BOOT)

• KIA BOSCH EDC17C08 TC1766

• KIA BOSCH MEG17.9.13 TC1766

• KIA SIEMENS/CONTINENTAL SIM2K-260 TC1791S(BOOT)

• PORSCHE CONTINENTAL SIMOS18.10 TC1791

• RENAULT CONTINENTAL EMS3125 TC1782

• SEAT CONTINENTAL SIMOS18.10 TC1791

• VOLKSWAGEN CONTINENTAL SIMOS18.10 TC1791

• VOLVO DENSO MB279700-9500 SH72543

Add Read/Write INT eeprom, Read/Write INT flash and Read ISN Code functions for below model:

• MINI BOSCH MEV17.2 TC1766

Add Read/Write INT eeprom, Read/Write INT flash, Read IMMO data, VW ECM IMMO Data Decryption and VW ME17/MED17 Odometer Recalibration functions for below models:

• AUDI BOSCH MED17.1 TCI796

• VOLKSWAGEN BOSCH MED17.1 TC1796

Details Optimized

Optimized Software

BCM V30.26 Software

Details Added

Add Read INT eeprom, Read PinCode functions for below model:

• FIAT BSI MAGNETI MARELLI ID48 9S12DG256 1K79X

Details Optimized

Optimized Software

OBDSTAR P004 Adapter Pinout

Does anyone have the pinout for OBDSTAR P004 adapter harness?

Here it is:

Read PSA BSI VALEO N03 with OBDSTAR DC706

 OBDStar DC706 read PSA BSI VALEO N03 module successfully.

Quick search PSA BSI Valeo N0X SC667152+ 95256

Check instruction and wiring diagram

Connect BSI module with DC706 following the pinout

Read ECU Info
BSI type: BSI Valeo N0X SC667152+ 95256

Connect

Read and save EXT eeprom

Read and save INT flash. Read flash takes longer

You can also read pin code

If need to clone BSI, write the modified EXT eeprom and INT flash back to BSI.



OBDSTAR X300 DP Plus Program 2024 Toyota Crown Smart Key

 How-to: add 2024 Toyota Crown spare smart key using OBDSTAR X300 DP Plus and 12-digit security code.

Select Toyota/Lexus->Manual Select system->Proximity->Type 8 (CAN)
Read key information

Select Add Smart Keys, function requires network connection
Turn on the ignition switch
OBDSTAR x300 dp plus asks if immo data has been saved.

If you don’t have a bypass cable you cannot read immo data and you will need need pincode. Now mostly no need pincode because we can get baypass the code.
Here we don’t read immo data.
Press ESC

OBDSTAR will ask 12 digit pin to access

Send data 1-2-3 to 3rd party to get 12-digit pin code
Enter security code

Put a working key to Start button
Put a new key to Start button

Program complete

Test the new key.

www.obdii365.com

Read and Write Hyundai SIM2K-251 ECU by OBDSTAR DC706

 OBDSTAR DC706 updated Hyundai Kia SIM2K-250 SIM2K-251 ECUs in 2023.  They fixed the bug in the new software version in Jan, 2024. Now it will read and write SIM2K 251/250 without problem.

Tools need:

OBDSTAR DC706

OBDSTAR P004 adapter

Requires ECM software version V30.41 or above (make sure is up-to-date)

Procedure:

Go to ECM->V30.41->Hyundai->Hyundai Simens/Continental SIM2K-251 TC1724+ TC1782

Read instructions and connections before operation

There are two MCUs in SIM2K250 and SIM2K260, one of the MCU types is TC1782 (stores ECM data), the other MCU type is TC1724 (stores TCM data).
If need to clone it, both ECM and TCM data need to be cloned.



Check wiring diagram

First comes the TCM

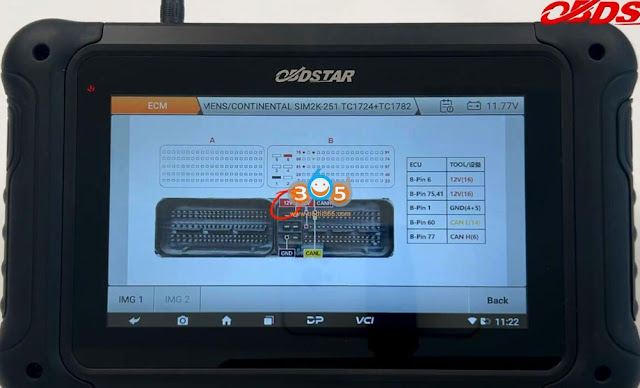

Then check ECM pinout.

Compared with TCM, ECM requries one more 12V jumper.

We are going to read TCM first

Connect TCM with DC706 via P004 follow the wiring diagram

Select protocol, press Start

Switch ignition off

Switch ignition on

Then press Connect

Read and save INT flash TC1724 of TCM

Read and save INT eeprom TC1724 of TCM

Write INT flash TC1724

Then write INT eeprom TC1724

Load external data, select INT eeprom TC1724 and write

Write INT eeprom successfully

Disconnect.



Then connect ECM with OBDSTAR DC706 via P004 follow the wiring diagram

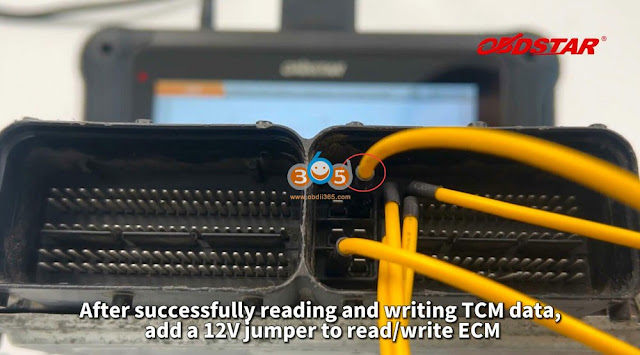

Add a 12V jumper

Select protocol->ECM

Switch ignition off

Switch ignition on

Connect

Read and save ECM INT Flash TC1782

Read and save ECM INT eeprom TC1782

Write INT flash TC1782

Load external data, upload INT flash TC1782 and write

Write INT flash TC1782 successfully.

Write INT eeprom TC1782

Write ECM INT eeprom TC1782 successfully.

Done.
