How-to: HYUNDAI Accent/Solaris HCR crash data reset by OBDSTAR X300 Classic G3 tool. Need to activate airbag reset license to G3.
Part number: 95910 H5000 AUTOLIV XC2361A
Procedure:
Quick search 95910 H5000 part number and select Hyundai 95910 H5000 AUTOLIV XC2361A.
Check wiring diagram.
Connect airbag module with G3 via P004 adapter.
Turn on ignition switch on P004.
Read airbag ECU information.
Read DTC. It has fault code B1649 and says crash stored.
If need try reset crash, it will report a communication error. We need to read airbag eeprom data first.
Read and save XC2361A eeprom data.

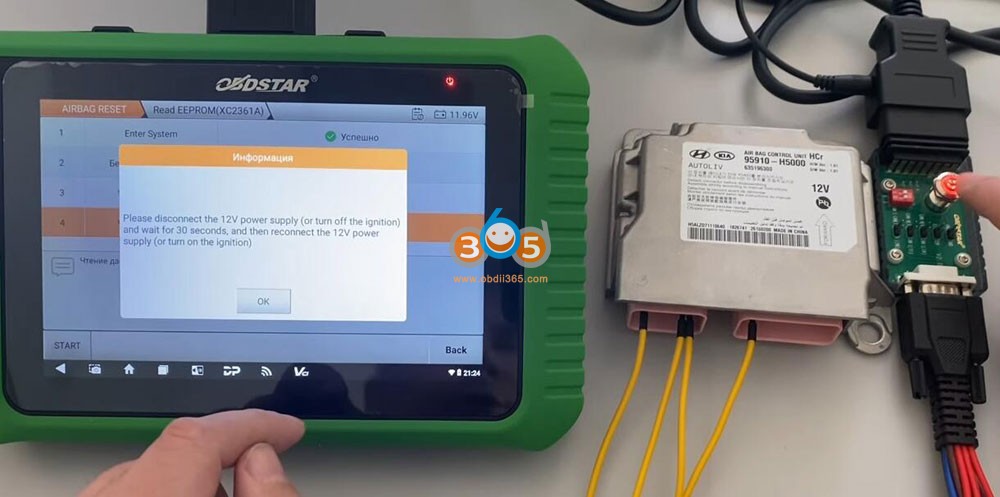

Disconnect the 12V power supply or turn off ignition. Wait for 30s, then reconnect 12V power supply or turn on ignition.
Select Erase crash.
Make sure eeprom has been read.

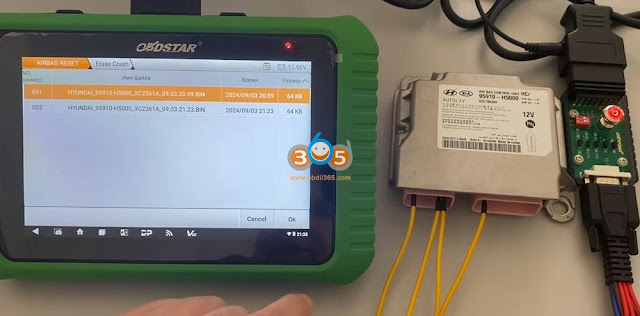

Load EEPROM data.
Erasing crash in process.
Clear airbag crash successfully.
Read DTC again. There is no crash stored.
