OBDSTAR P50 Reset Hyundai Airbag Crash 95910-P0110

 How-to: reset 2022-2024 Hyundai Tucson airbag 95910-P0110 crash using OBDSTAR P50 airbag reset tool.


OBDSTAR P50 Reset Hyundai Airbag Crash 95910-P0110 1

Part number: 95910-P0110

MCU Processor: R7F7015803

Tools used: OBDSTAR P50 and CAN FD adapter.

For this part number you will need the CAN FD adapter.

OBDSTAR P50 Reset Hyundai Airbag Crash 95910-P0110 2

P50 reads a crash fault code: B1650:00-89

Crash recorded in 1st Stage Only Frontal!!!

OBDSTAR P50 Reset Hyundai Airbag Crash 95910-P0110 3

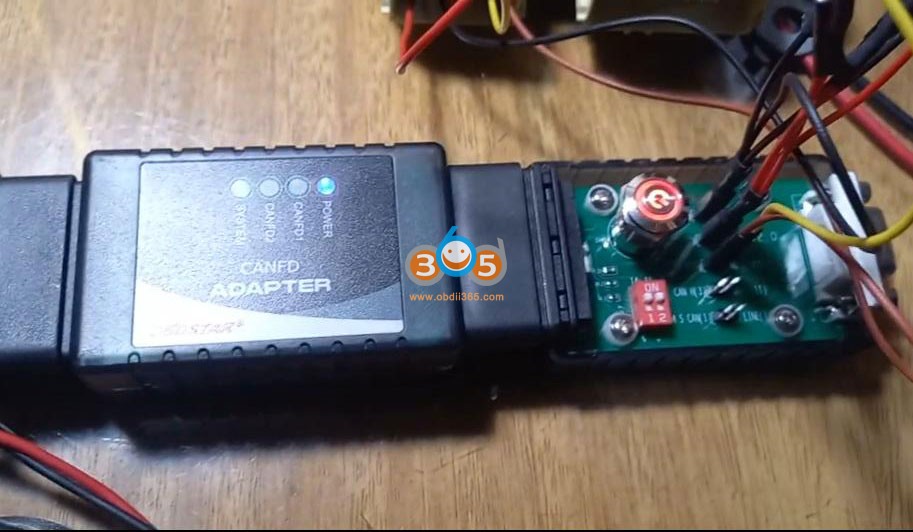

Connect airbag module with CAN FD adapter and P50 following the diagram in device.

OBDSTAR P50 Reset Hyundai Airbag Crash 95910-P0110 4

OBDSTAR P50 Reset Hyundai Airbag Crash 95910-P0110 5

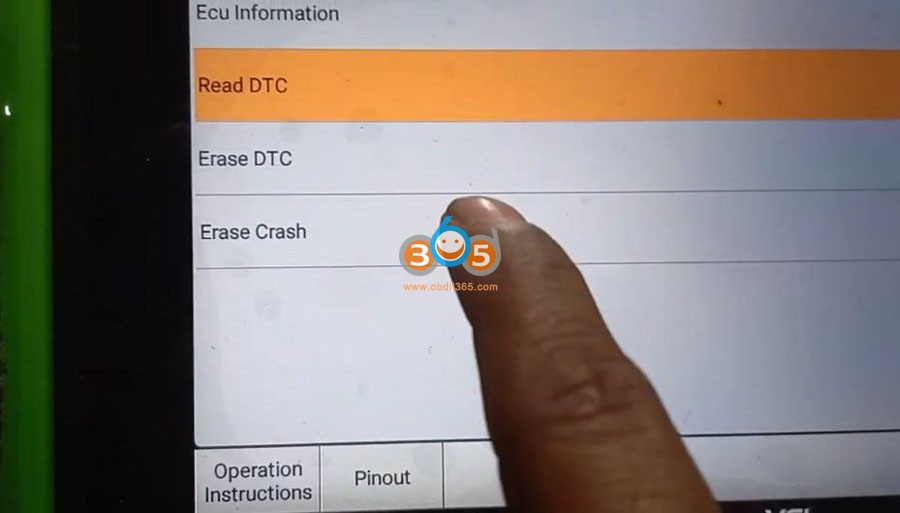

Erase crash.

OBDSTAR P50 Reset Hyundai Airbag Crash 95910-P0110 6

This function requires network connection.

OBDSTAR P50 Reset Hyundai Airbag Crash 95910-P0110 7

Crase crash successfully.
Disconnect 12V power supply and wait for 30 seconds.
Then reconnect the 12V power supply.

OBDSTAR P50 Reset Hyundai Airbag Crash 95910-P0110 8

Erase DTC

OBDSTAR P50 Reset Hyundai Airbag Crash 95910-P0110 9

OBDSTAR P50 Reset Hyundai Airbag Crash 95910-P0110 10

Erase DTC success.

Read DTC again.

OBDSTAR P50 Reset Hyundai Airbag Crash 95910-P0110 11

B1650 fault code was cleared. No longer crash code. It is all cleared.
