OBDSTAR X300 DP Plus Program 2021 Ford Explorer All Keys Lost

 Tutorial: How to program 2021 Ford Explorer All Keys Lost using OBDSTAR X300 DP Plus or Code Cannibal and using door code to deactivate the alarm.

We are working on a 2021 Ford Explorer with keyless entry. The alarm is on. We need to disable active alarm to get communication. We have Ford AKL bypass cables to disable alarm. Bypass cable is easier. We can also using door code to deactivate the alarm.



Here we will show how to turn the alarm off with the door key pad in case your don’t have any bypass cables.

Code is printed on the security module on all fords.

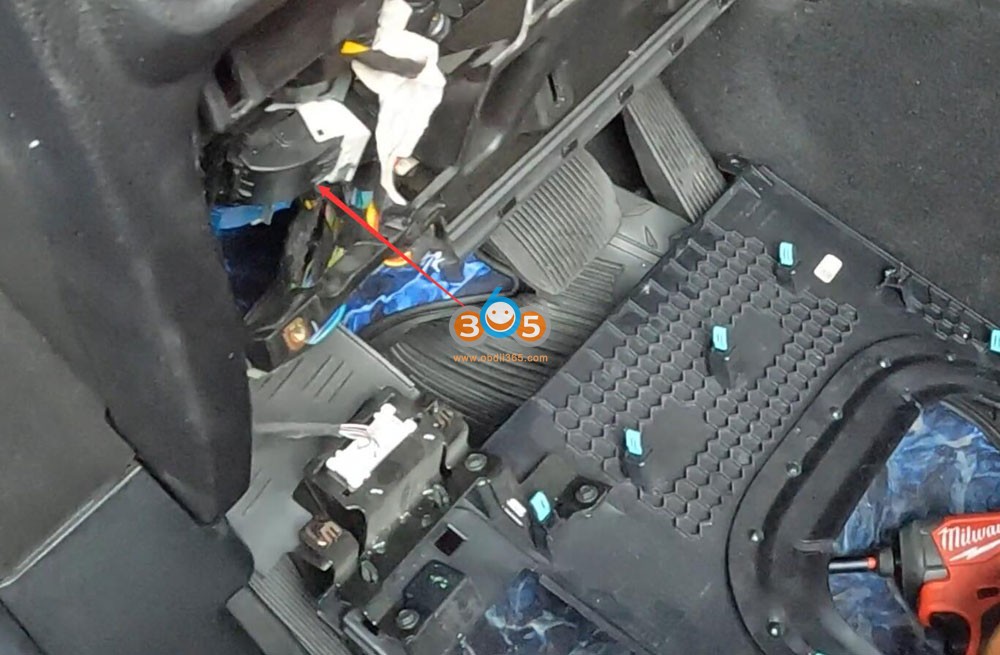

This is your body control module behind there is a code sticker. A sticker that has a code on it for the door to get it unlock so we can have access to be able to add keys to it.

It is going to be backwards. There is a couple of screws 7 mm screws that hold this panel down and then there’s one 7 mm nut over here that holds the body control module on.

You are going to need the swivel head because it is really tight. Unscrews these screws.  So your control module moves down pretty smoothly.

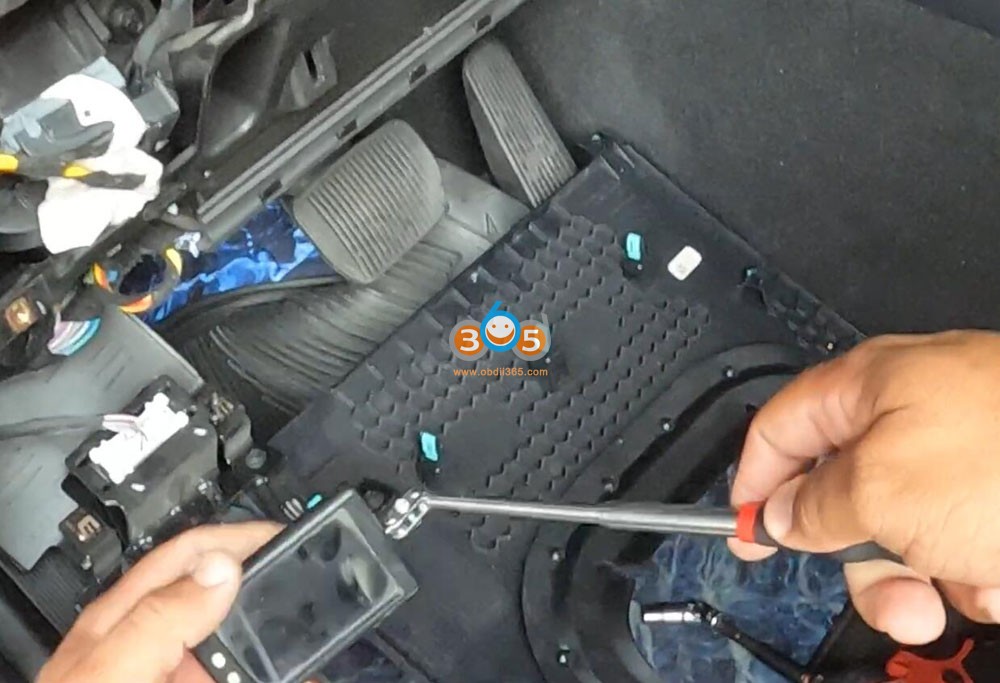

You will need a borescope to be able to see the code. You can see the label with borescope.
Then take a picture of it.

It’s the reverse it. So that should be 935 73.  You hit 935 73 on door key pad to turn off alarm.

Then connect OBD key programmer with the vehilce and OBD cable.

For example, use OBDSTAR X300 DP Plus or Code Cannibal to program 2021 Explorer all smart keys lost.

Select Ford->USA-> Explorer-> Proximity-> 2021 onwards

Read key number.

Then select Add keys.

Configuring system.

Insert new smart key into card slot. Water cup of the glove box close to the cab side. The programming slot is in here. Put your key in there.

Press Start/Stop button.

Program key successfully.

Test the new key.
